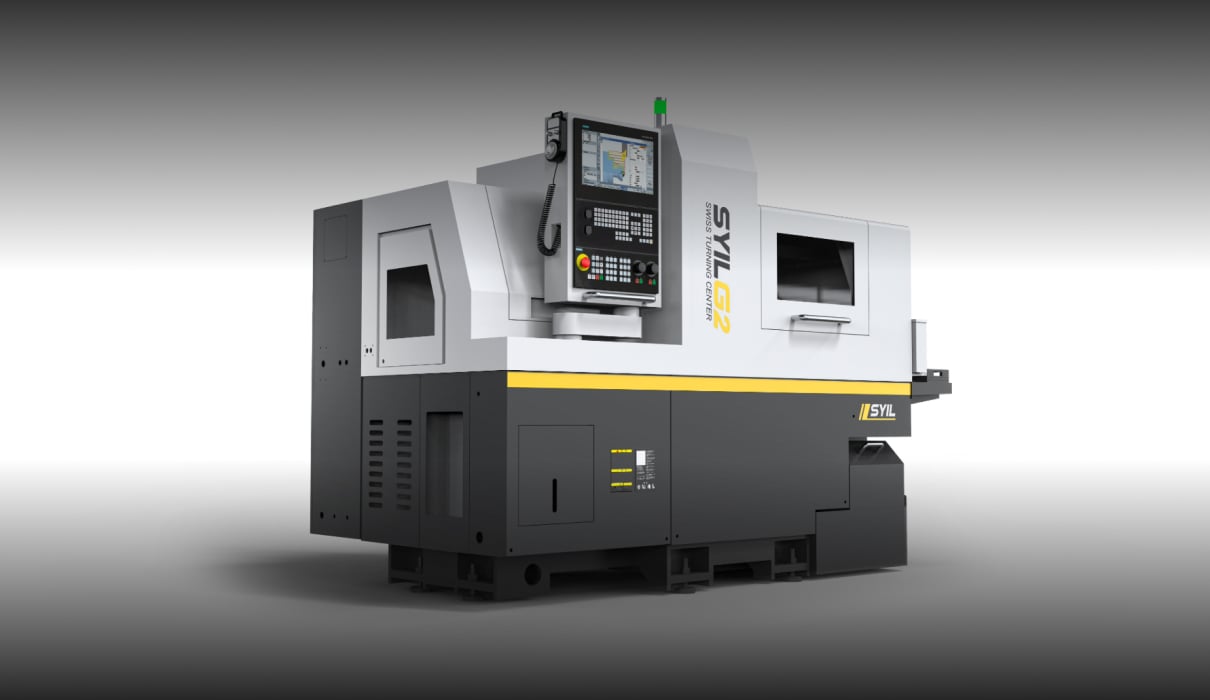

SYIL x Siemens SINUMERIK
SYIL G2 标配西门子 SINUMERIK 828D 控制系统。凭借其先进的数控性能，SINUMERIK 828D 为 SYIL 机床的车削生产率设定了标准。新增的 SINAMICS 驱动器和 SIMOTICS 运动控制电机使 SINUMERIK 828D 的生产效率更高。其强大的硬件结构和智能控制算法与高质量的驱动和电机技术相结合，确保了加工过程中最大的动态性能和精度。
.jpg?width=5760&name=g2-3%20(1).jpg)

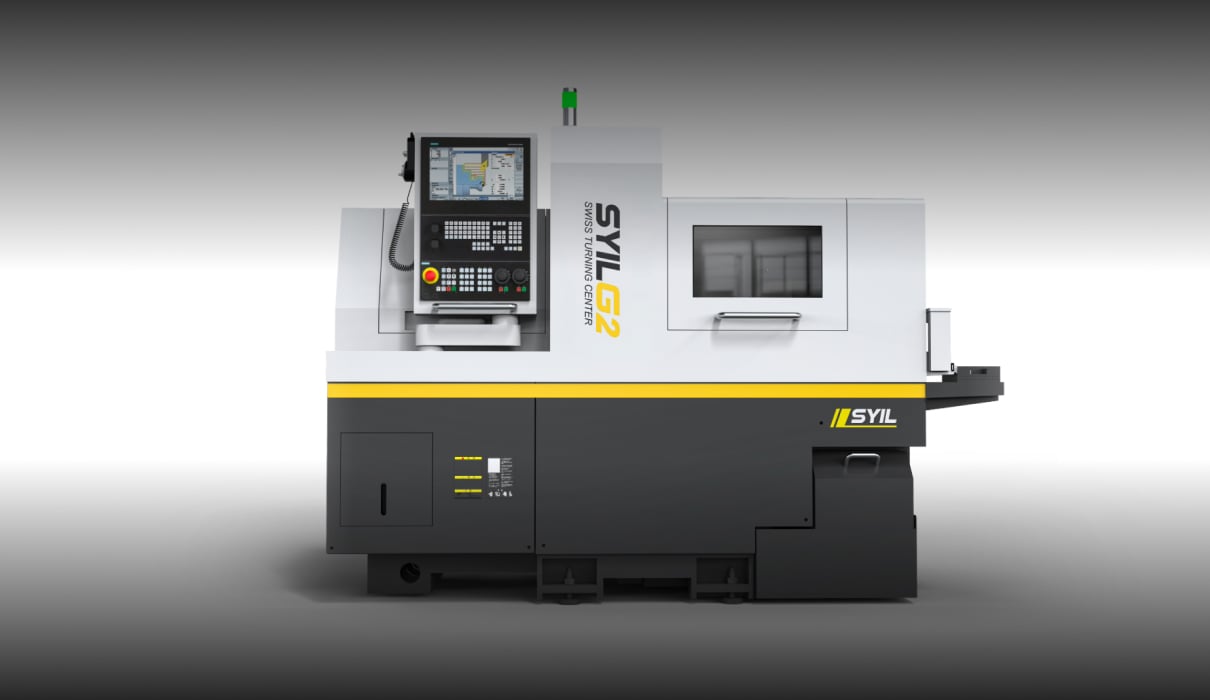

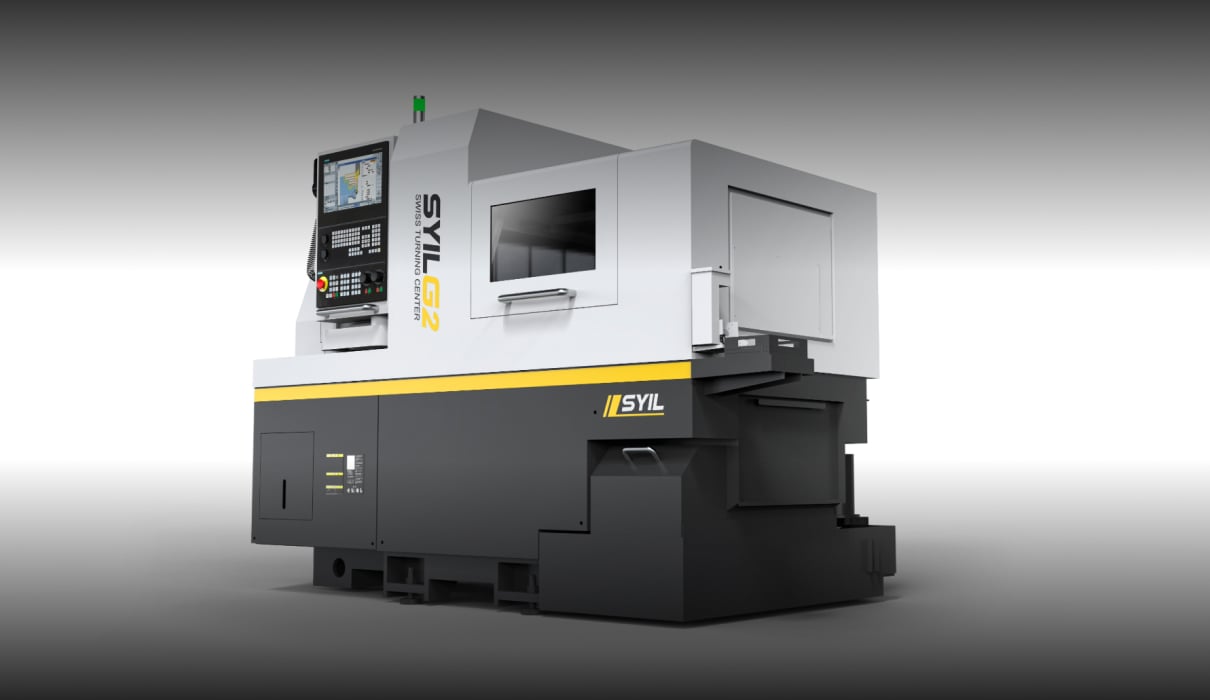

SYIL G2 的特点
非常适合加工小型和较长的零件，具有极高的精度和稳定性。
.jpg?width=5760&name=g2-2%20(1).jpg)
Technical Specifications
G2 L205
G2 L265
G2 205
G2 206
G2 206
G2 206
Processing capabilities
Maximum processing bar diameter(mm)
Φ20
Φ26
Φ20
Φ20
Φ26
Φ26
Spindle through hole diameter(mm)
Φ25
Φ30
Φ25
Φ25
Φ30
Φ30
Maximum processing length(mm) &(inch) (No guide bushing)
2.5D(maximum 50)
2.5D(maximum 50)
2.5D(maximum 50)
2.5D(maximum 50)
2.5D(maximum 50)
2.5D(maximum 50)
Maximum processing length(mm) &(inch) (Fixed guide sleeve)
220(optional)
220(optional)
220(optional)
220(optional)
220(optional)
220(optional)
Maximum processing length(mm) &(inch) (Rotary guide sleeve)
180
180
180
180
180
180
Maximum clamping diameter of back spindle(mm)
Φ20
Φ20
Φ20
Φ20
Φ20
Φ20
Maximum drilling diameter of spindle(mm)
Φ10
Φ10
Φ10
Φ10
Φ10
Φ10
Maximum tapping diameter of spindle
M10
M10
M10
M10
M10
M10
Maximum drilling diameter of back spindle (mm)
Φ10
Φ10
Φ10
Φ10
Φ10
Φ10
Maximum tapping diameter of back spindle
M8
M8
M10
M10
M10
M10
Maximum drilling diameter of radial live tool(mm)
Φ8
Φ8
Φ8
Φ8
Φ8
Φ8
Maximum tapping diameter of radial live tool
M6
M6
M6
M6
M6
M6
Maximum drilling diameter of back powered tool(mm)
Φ8(optional)
Φ8(optional)
Φ8(optional)
Φ8
Φ8(optional)
Φ8
Maximum tapping diameter of back powered tool
M6(optional)
M6(optional)
M6(optional)
M6
M6(optional)
M6
Mechanical capabilities
Spindle speed(r/min)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
Back spindle speed(r/min)
10000
10000
10000
10000
10000
10000
Radial live tool speed(r/min)
5000
5000
6000
6000
6000
6000
Back live tool speed(r/min)
6000 (optional)
6000 (optional)
6000 (optional)
6000
6000 (optional)
6000
Rapid moving speed(m/min)
24(X2, Y1, Z1, Z2)
24(X2, Y1, Z1, Z2)
24(X2, Y1, Z1, Z2)
24(X2, Y1, Z1, Z2)
24(X2, Y1, Z1, Z2)
24(X2, Y1, Z1, Z2)
Rapid moving speed(m/min)
20(X1)
20(X1)
20(X1)
20(X1, Y2)
20(X1)
20(X1, Y2)
Spindle runout(mm)
≤0.002
≤0.002
≤0.002
≤0.002
≤0.002
≤0.002
Repeat positioning accuracy(mm)
≤0.003
≤0.003
≤0.003
≤0.003
≤0.003
≤0.003
Tool system
External cylindrical tools
1(□16)+5(□12)
1(□16)+5(□12)
1(□16)+6(□12)
1(□16)+6(□12)
1(□16)+6(□12)
1(□16)+6(□12)
End face machining tools
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
Radial live tools
2(ER11)+2(ER16)
2(ER11)+2(ER16)
2(ER11)+3(ER16)
2(ER11)+3(ER16)
2(ER11)+3(ER16)
2(ER11)+3(ER16)
Deep hole tool holder
4(ER16)+1(Φ20)
4(ER16)+1(Φ20)
2(ER16, optional)
2(ER16, optional)
2(ER16, optional)
2(ER16, optional)
Back machining tools
--
--
4(ER16)
4(ER16)
4(ER16)
4(ER16)
Back powered tool
--
--
Optional
4(ER16)
Optional
4(ER16)
Back turning tool holder
--
--
none
2(□16, optional)
none
2(□16, optional)
Motor power
Spindle(kw)
4.2
4.2
4.2
4.2
4.2
4.2
Back spindle(kw)
3.1
3.1
4.2
4.2
4.2
4.2
Linear drive shaft(kw)
1 (X1, X2, Y1, Z1) 0.75(Z2)
1 (X1, X2, Y1, Z1) 0.75(Z2)
1(Siemens: 0.94)
1(Siemens: 0.94)
1(Siemens: 0.94)
1(Siemens: 0.94)
Radial live tool(kw)
1
1
1(Siemens: 0.94)
1(Siemens: 0.94)
1(Siemens: 0.94)
1(Siemens: 0.94)
Back live tool(kw)
0.75
0.75
1(Siemens:0.94)(Optional)
1(Siemens:0.94)
1(Siemens:0.94)(Optional)
1(Siemens:0.94)
Cooling pump(kw)
0.4
0.4
0.4
0.4
0.4
0.4
Weight and size
Weight (kg)
2400
2400
2900
3000
2900
3000
Size (mm)
2380x1300x1770
2380x1300x1770
2565x1350x1850
2565x1350x1850
2565x1350x1850
2565x1350x1850
